Heavy duty cylinder

Brand:

Quantity ：

Place in Cart

Add to Enquiry

For more assistance with products, please feel free to contact us.
Email: usd000@qq.com

Commodity details

PRODUCT DESCRIPTION

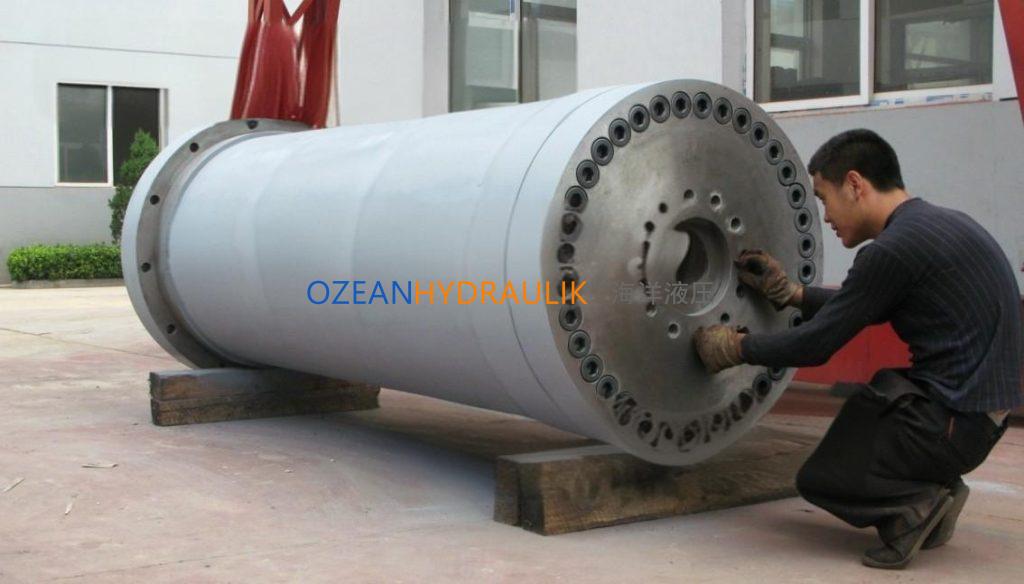

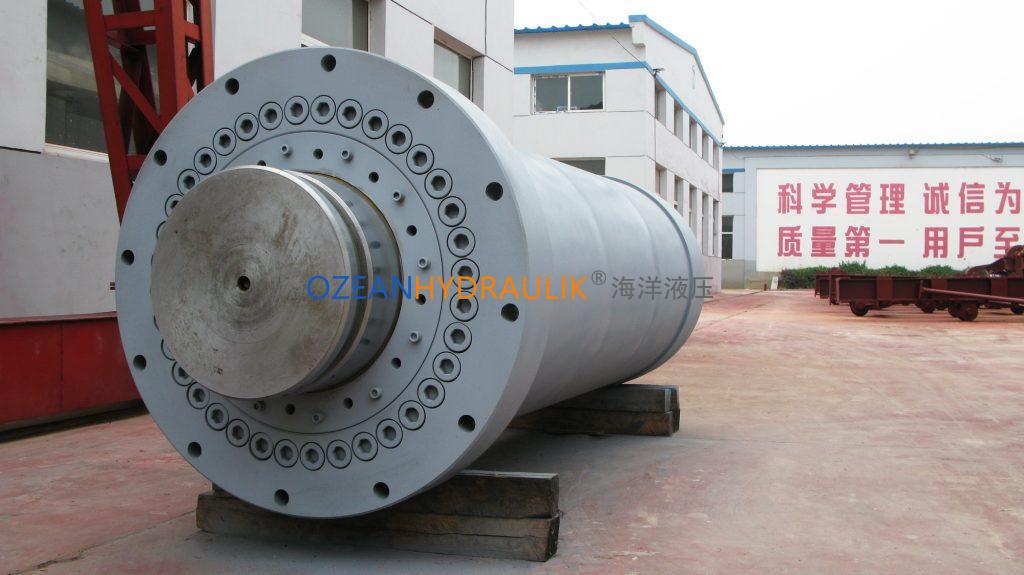

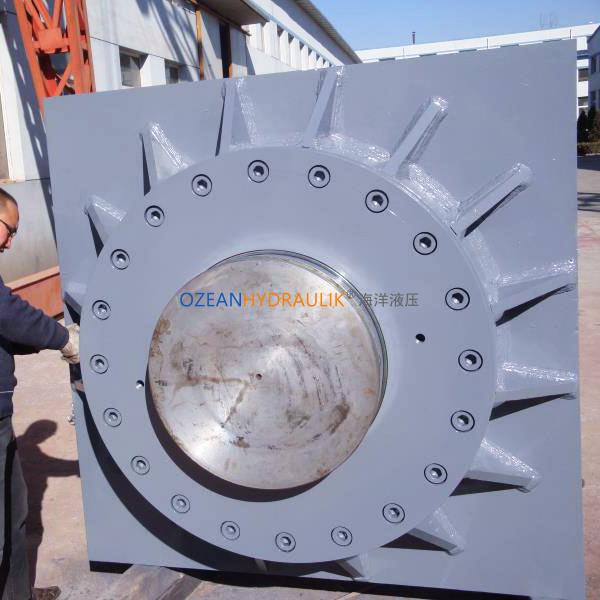

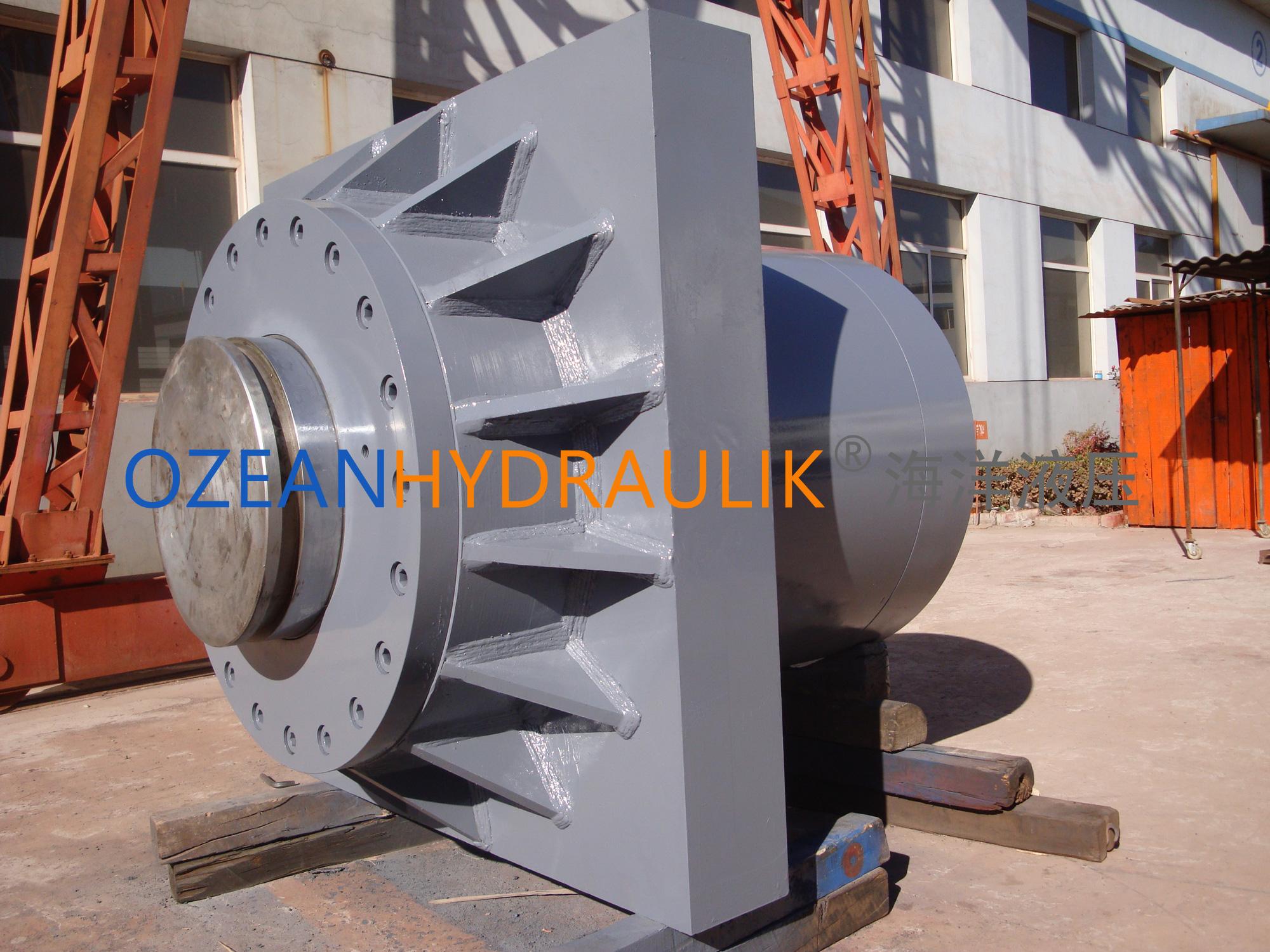

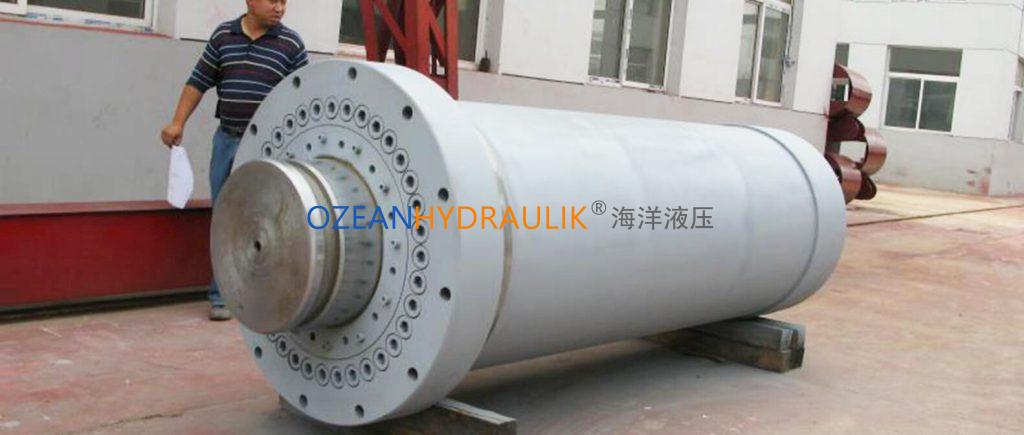

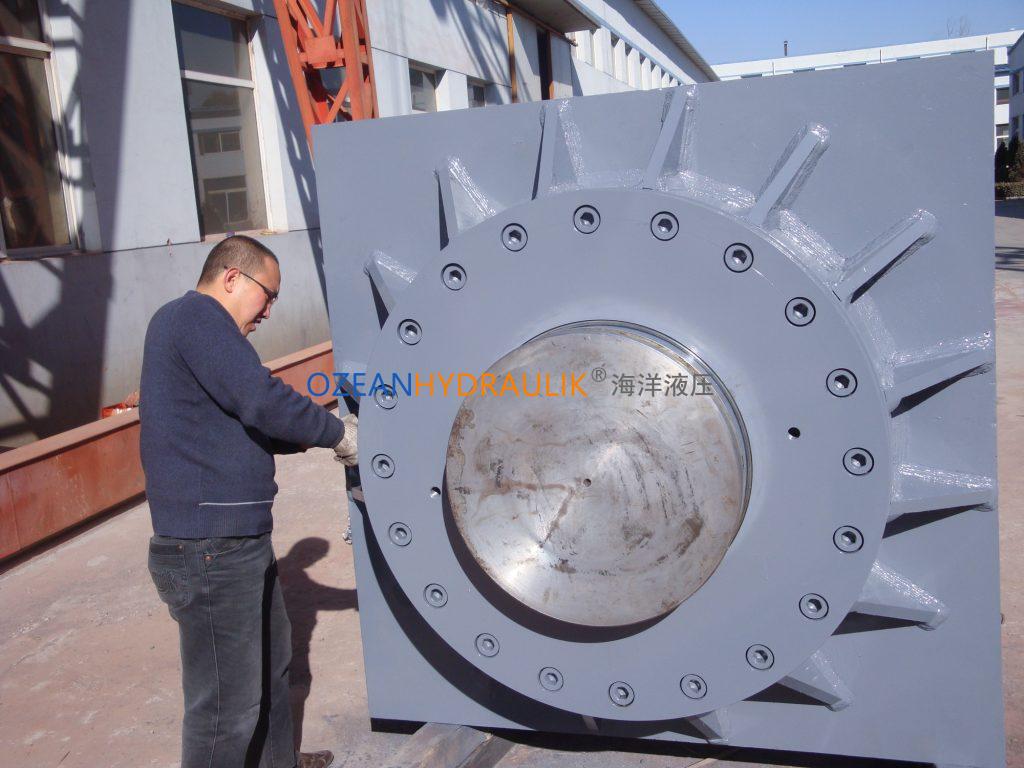

The heavy-duty hydraulic cylinder with a bore diameter greater than 600mm is capable of withstanding immense forces and providing long-lasting operation cycles. It is commonly used as a hydraulic power actuator in mechanical equipment for lifting, casting, metallurgy, geological construction, and other applications.

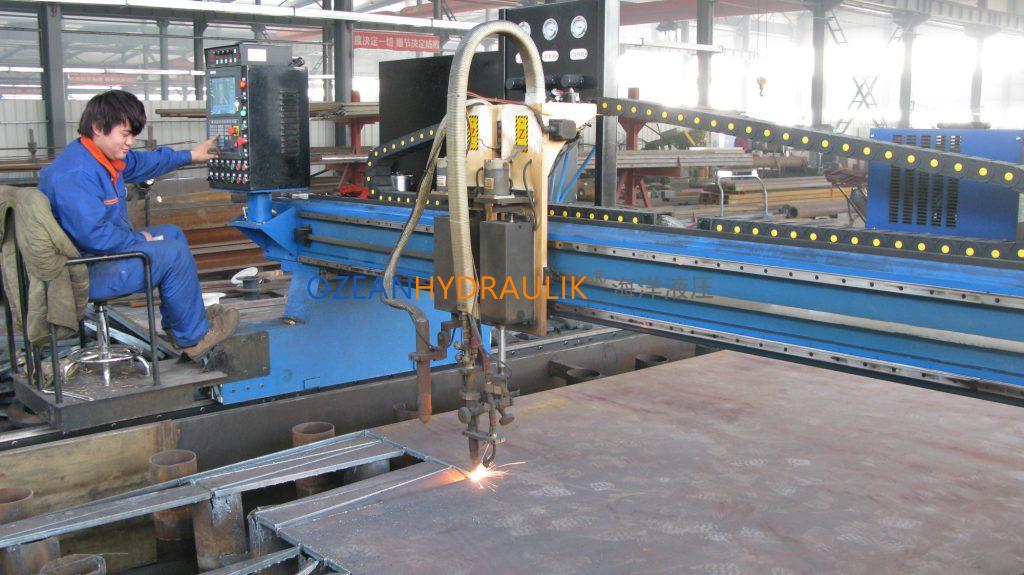

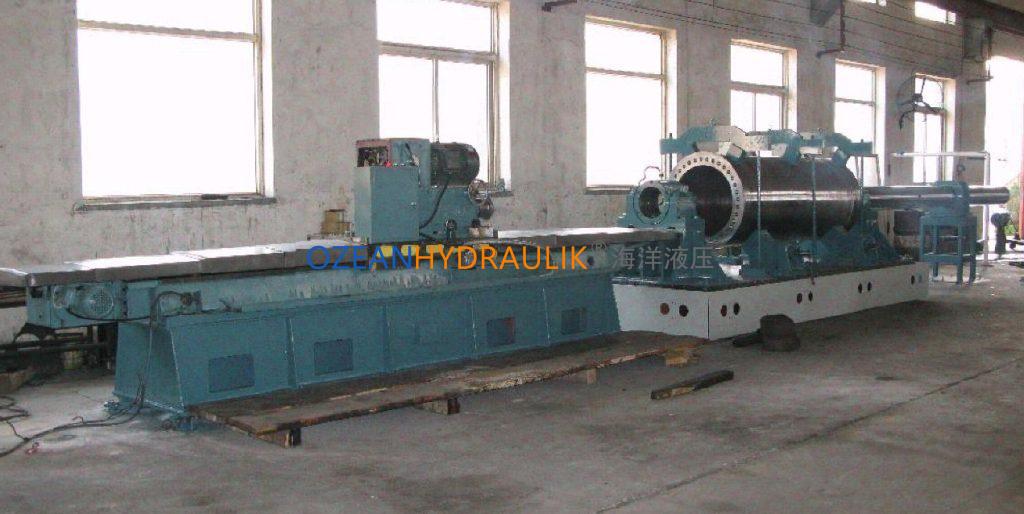

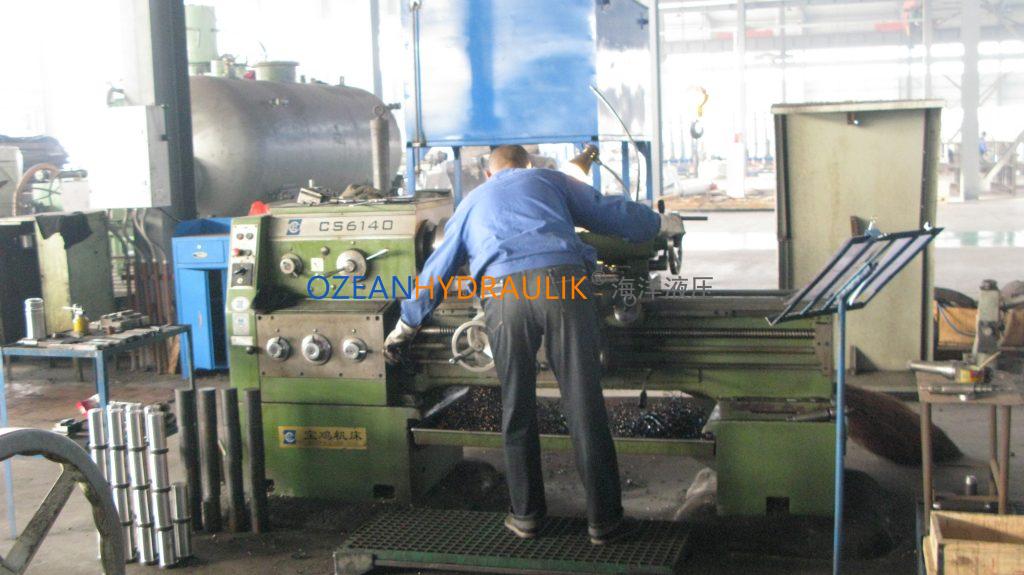

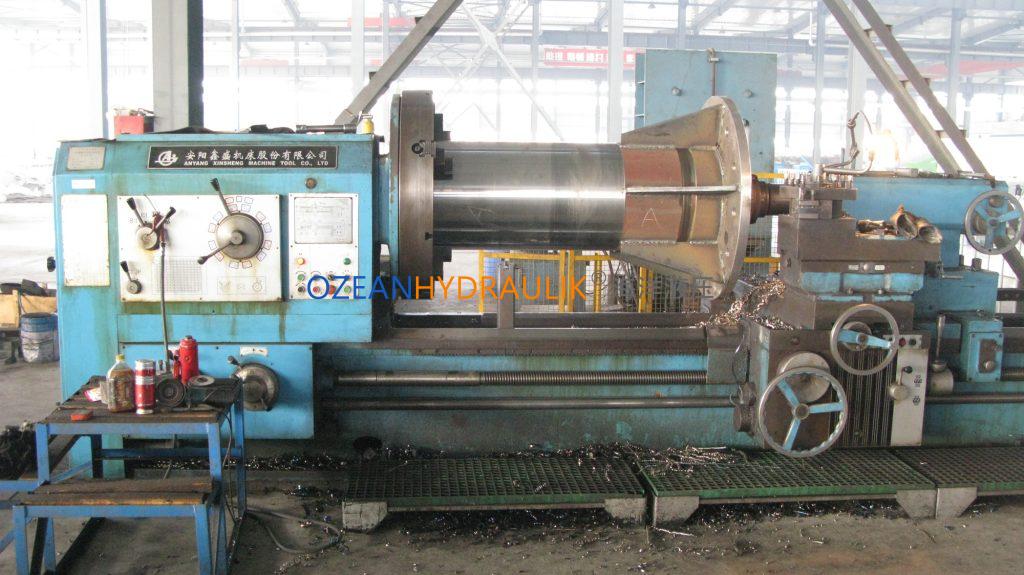

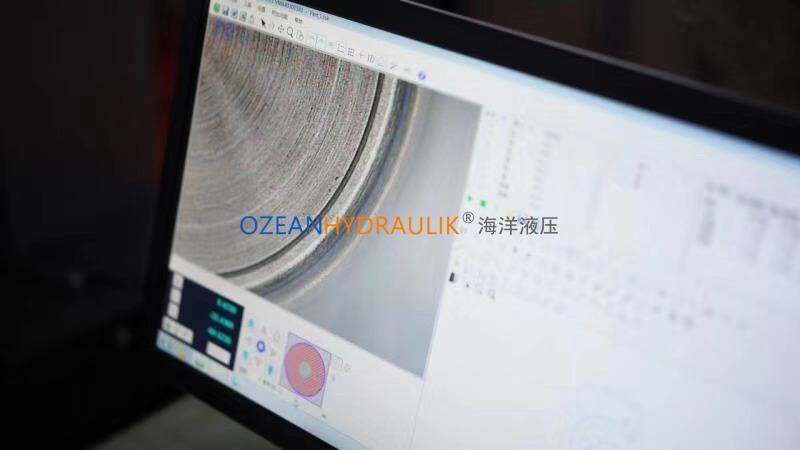

Processing

Blueprints / Drawings

Note: These drawings are for reference only. The final design will be customized based on your requirements.

Outline Drawing

Schematic Diagram

MAIN PARAMETER

1	Cylinder Diameter	2000mm MAX
2	Length	6000mm MAX
3	Cylinder Tube	Machining Tolerance < 0.01
4	Ovality	Tolerance < 0.01
5	Straightness	Tolerance < 0.03mm
6	Cylindricity	Tolerance < 0.03mm
7	Roughness	Ra0.4

The above parameters are for reference; customization is available according to specific requirements.
