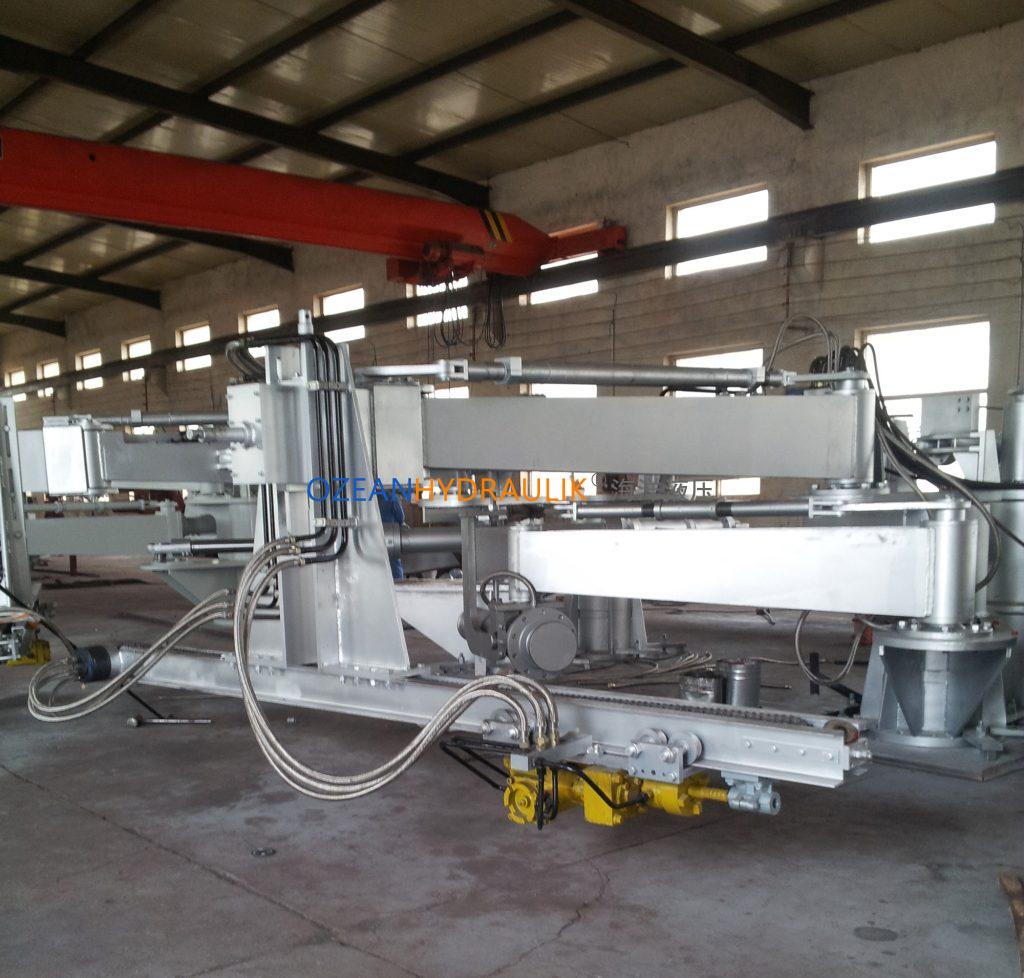

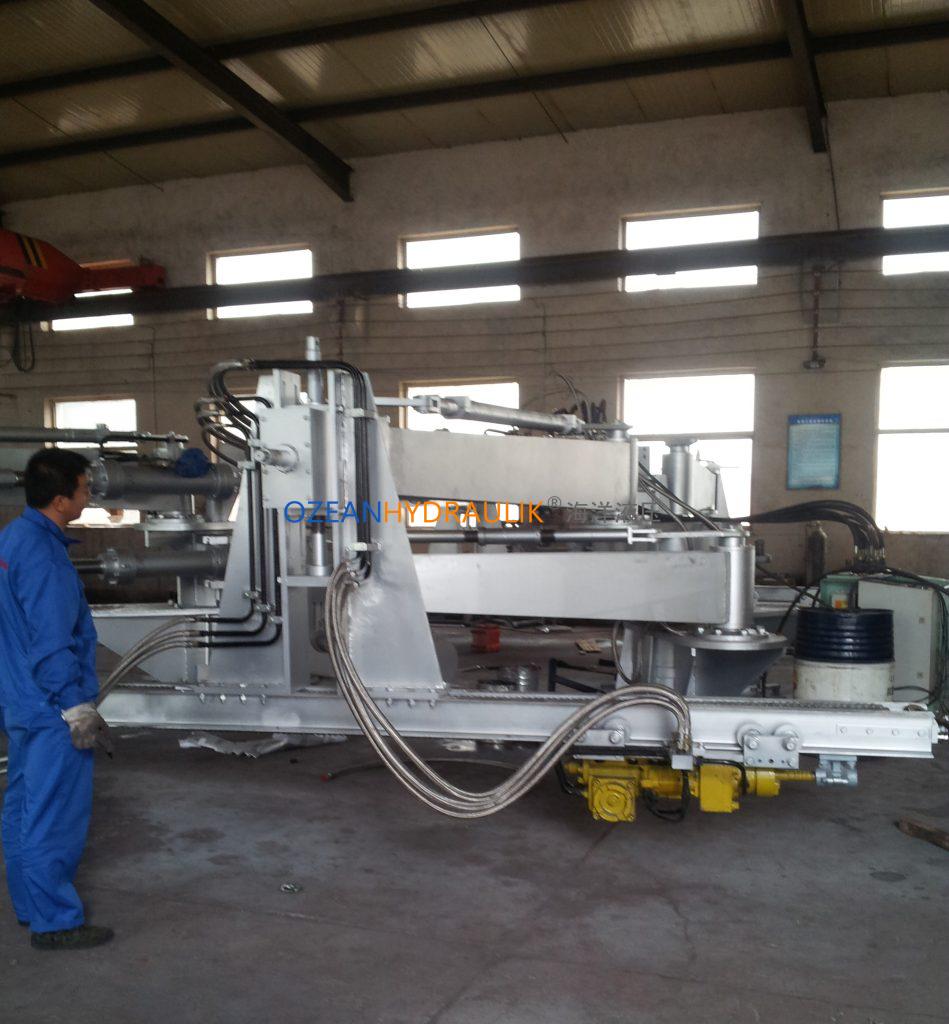

Mud gun and tapping drill – Type 2

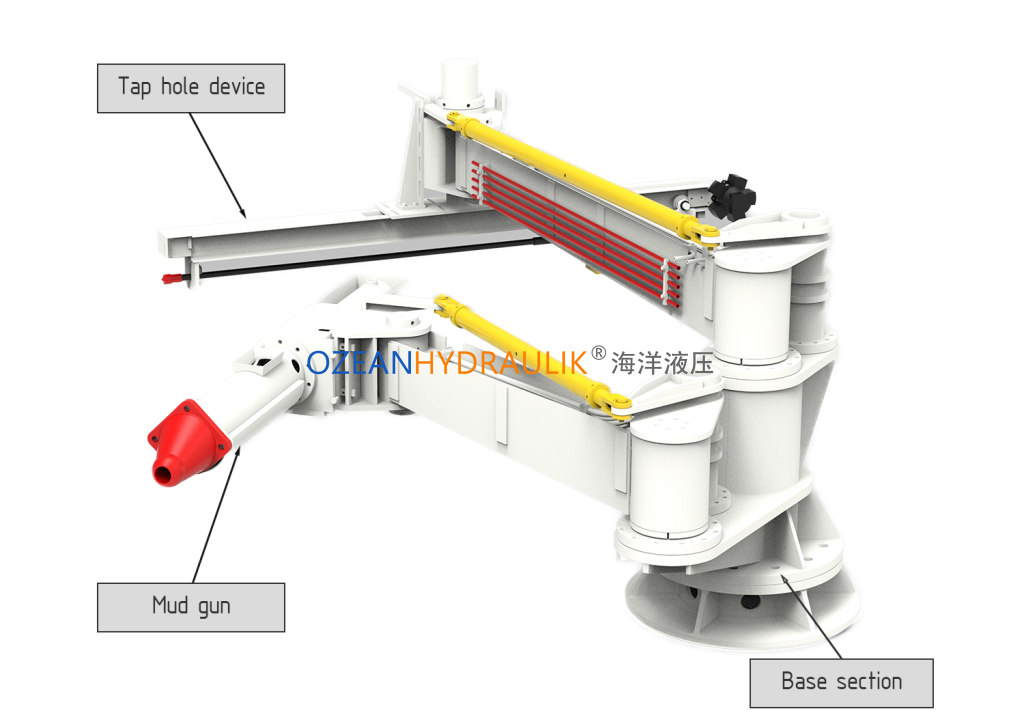

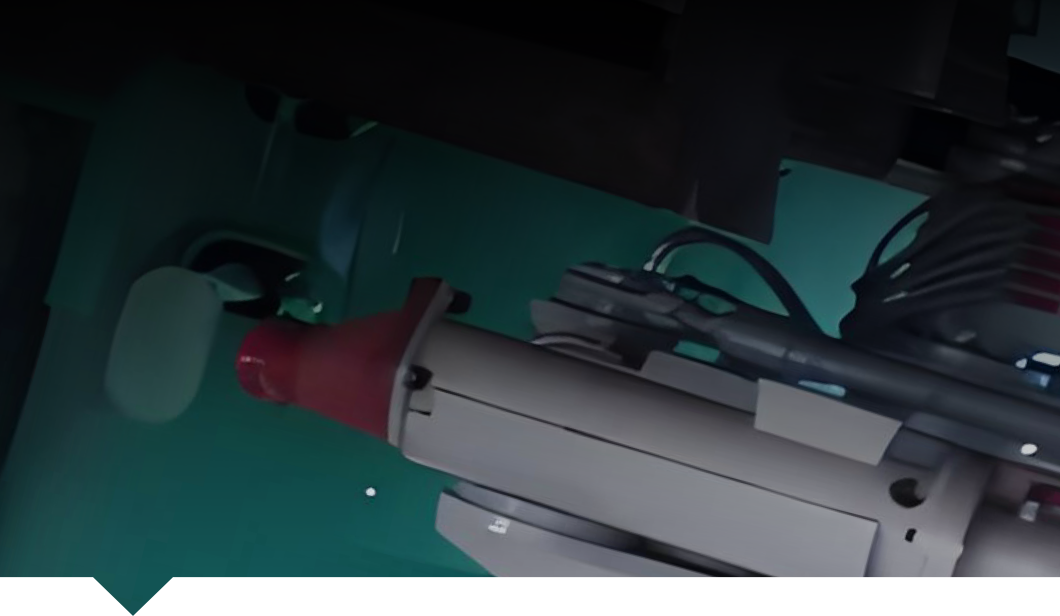

Equipment Overview:

Primarily used for large ore thermal furnaces, tapping, and plugging holes.

Features: small footprint in front of the furnace, compact structure, high strength, and convenient and quick tapping and plugging.

Rock Drilling Options for Tapping

Available in three types: pneumatic rock drill, hydraulic rock drill, and combined pneumatic-hydraulic rock drill.

Control Methods

Remote control and wired manual control are available.

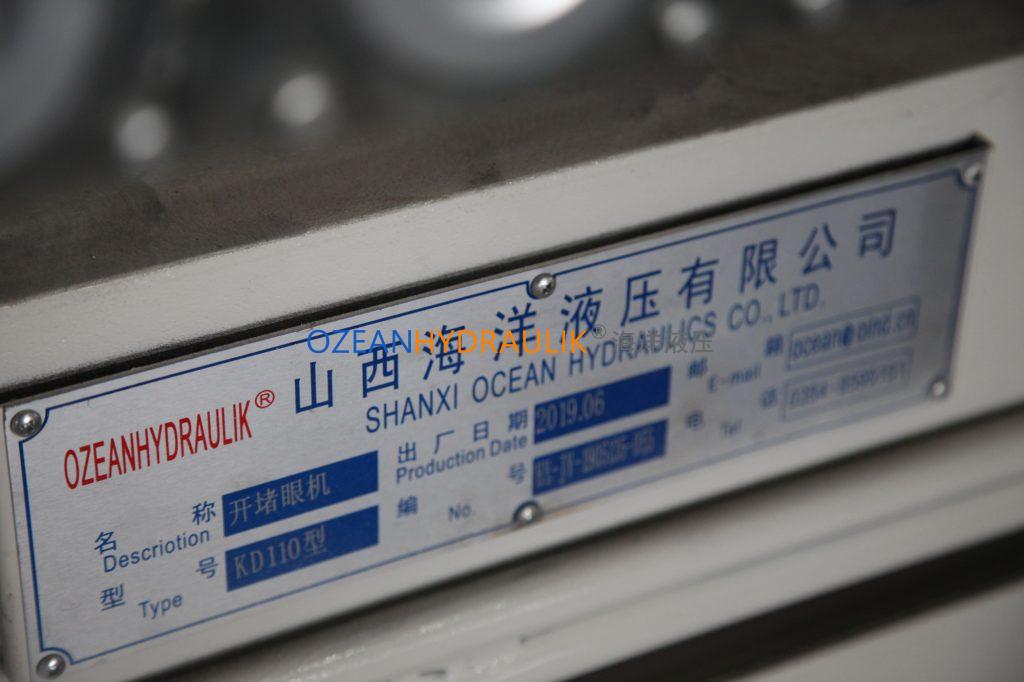

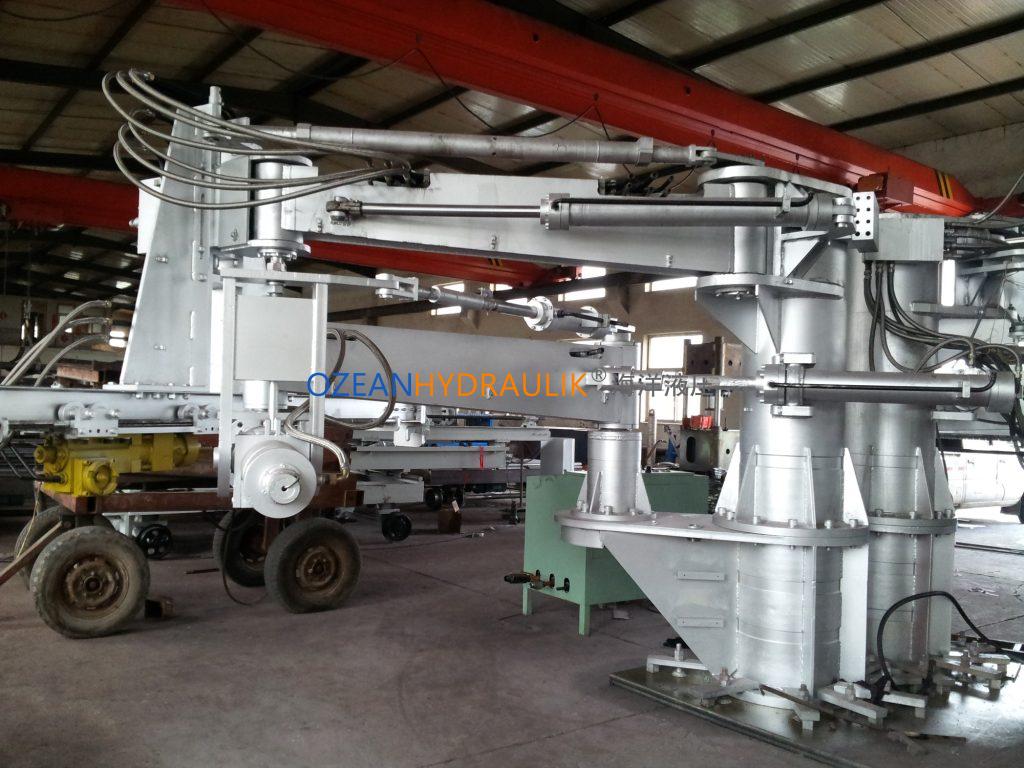

PRODUCT DESCRIPTION

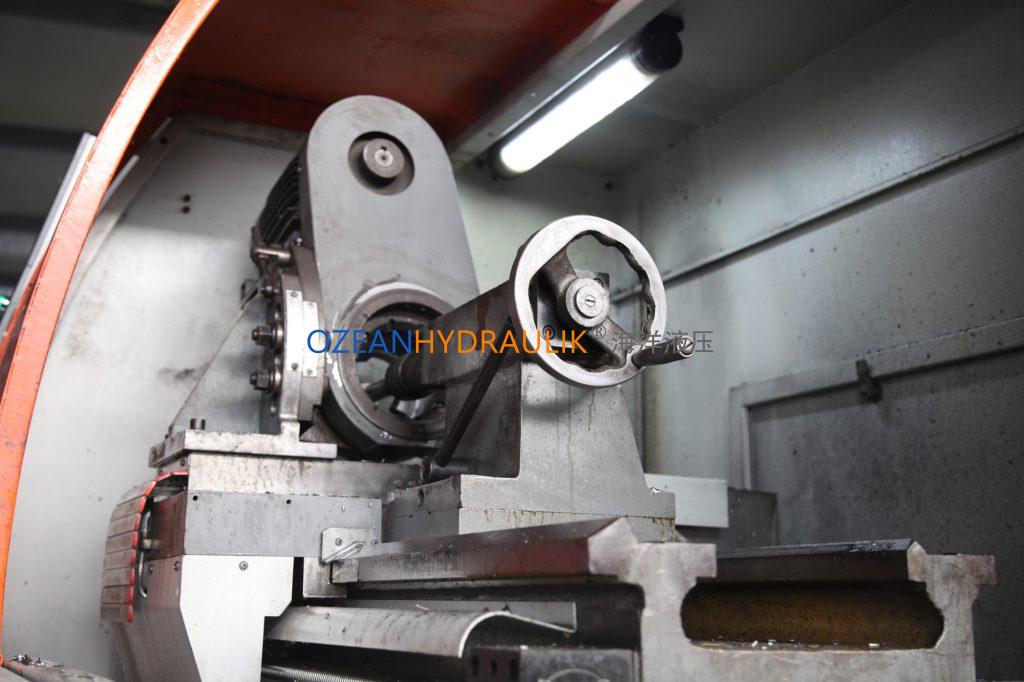

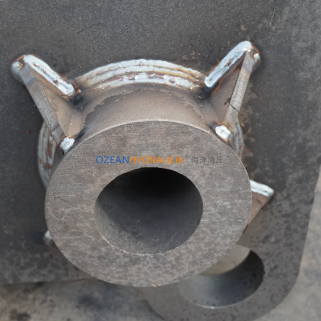

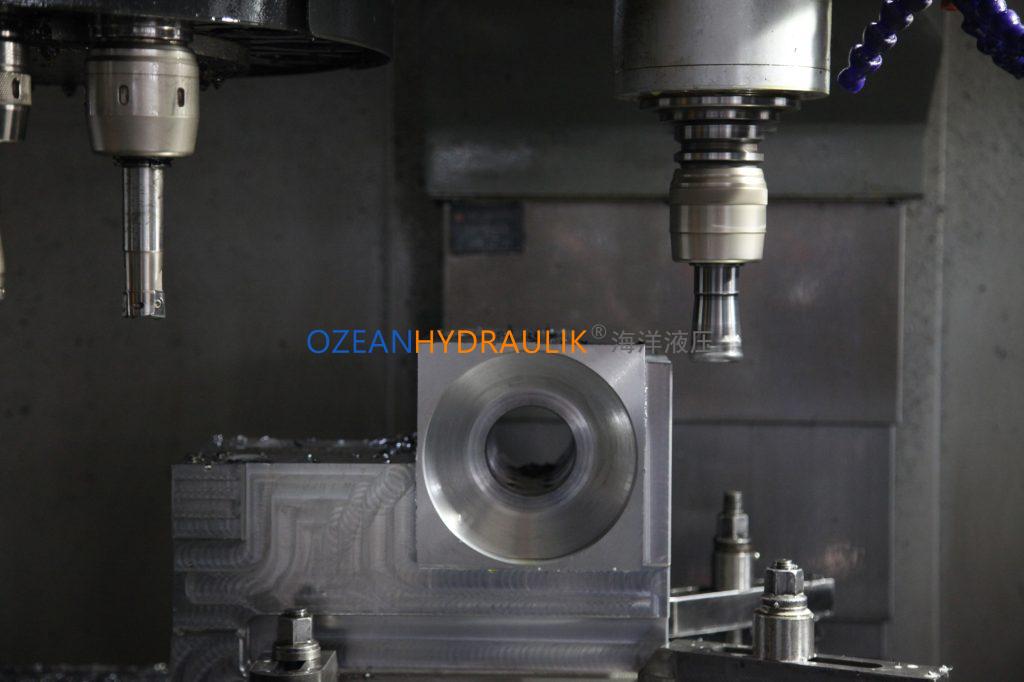

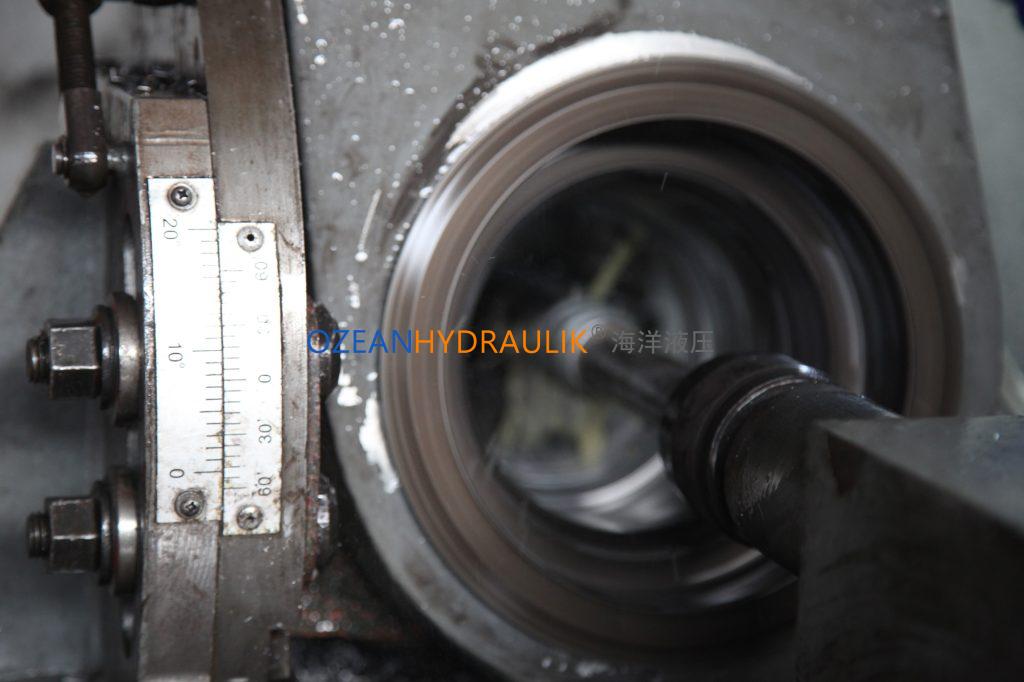

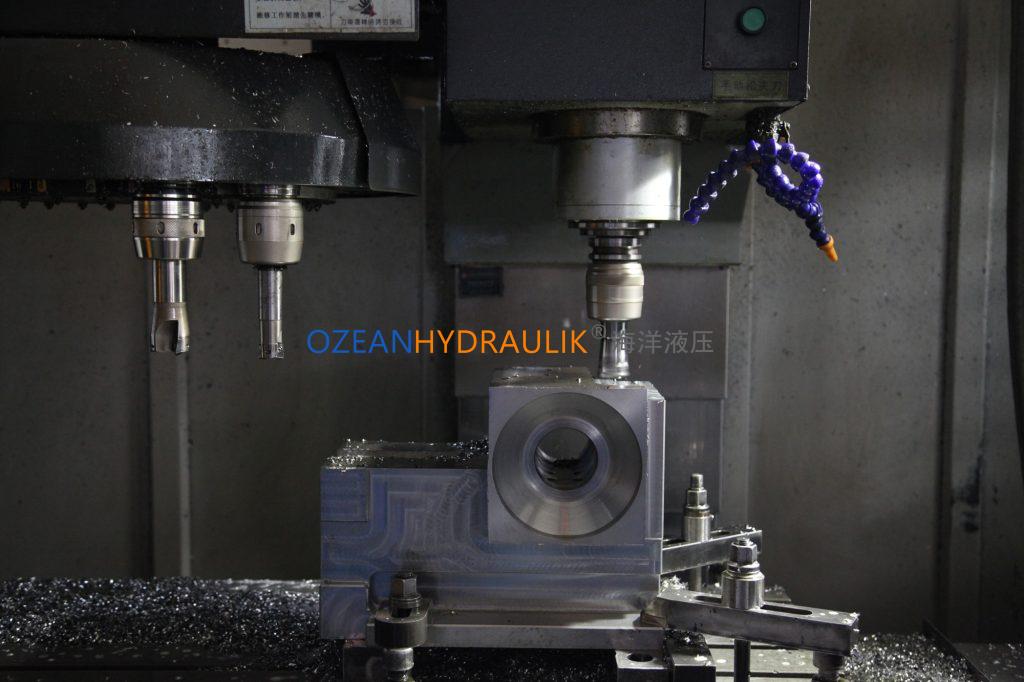

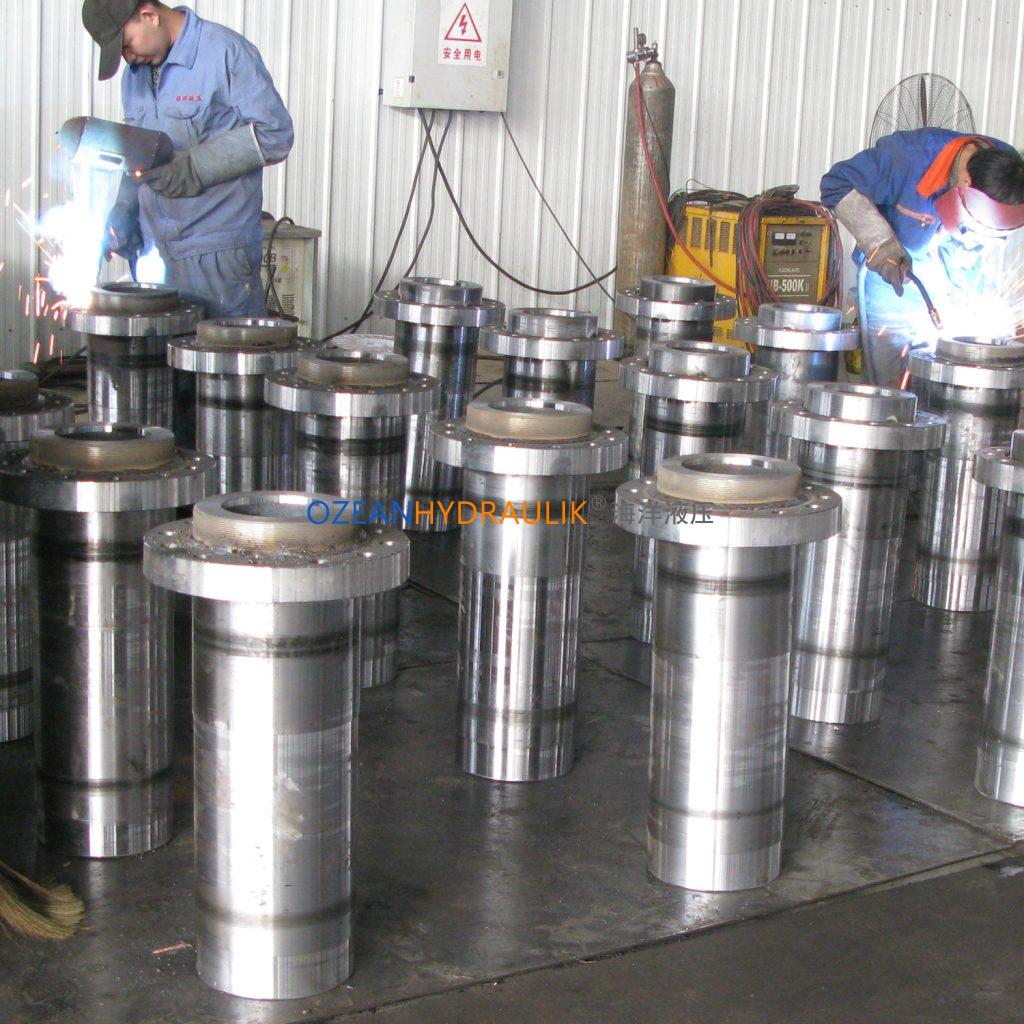

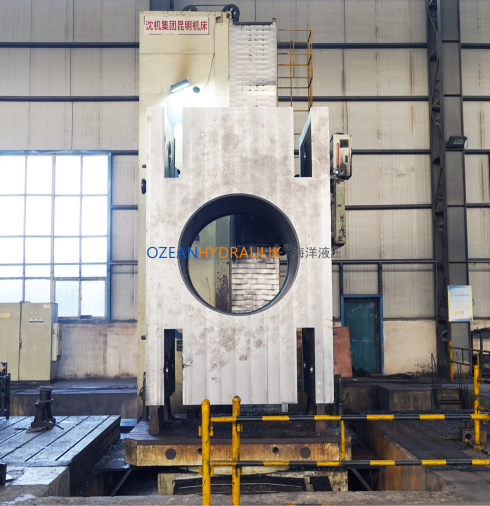

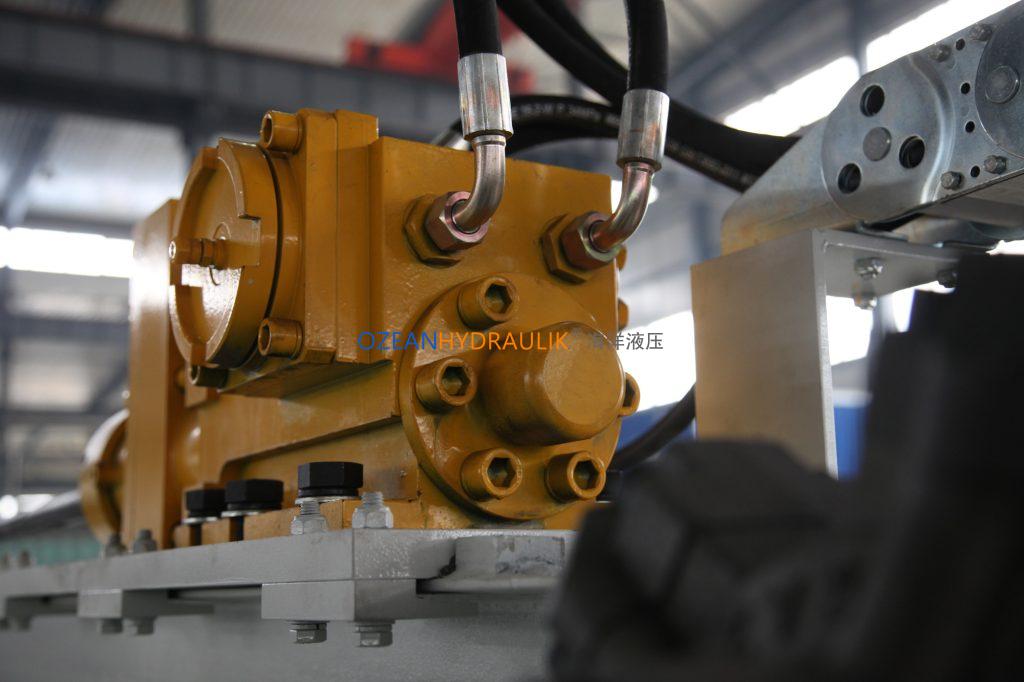

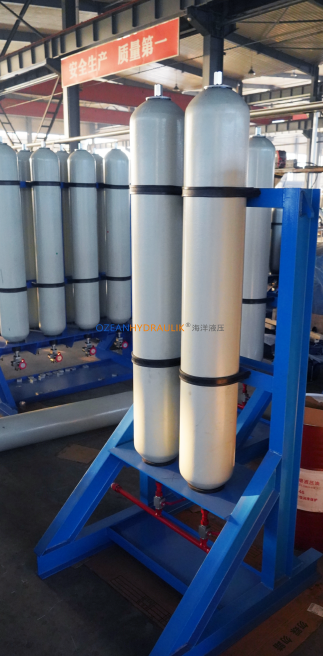

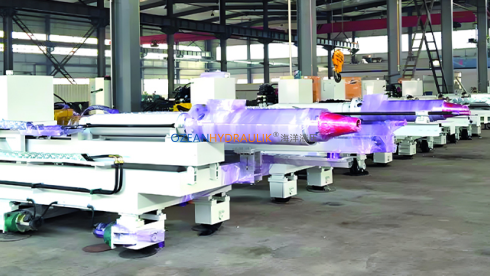

Processing

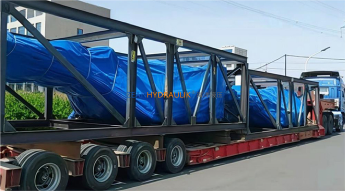

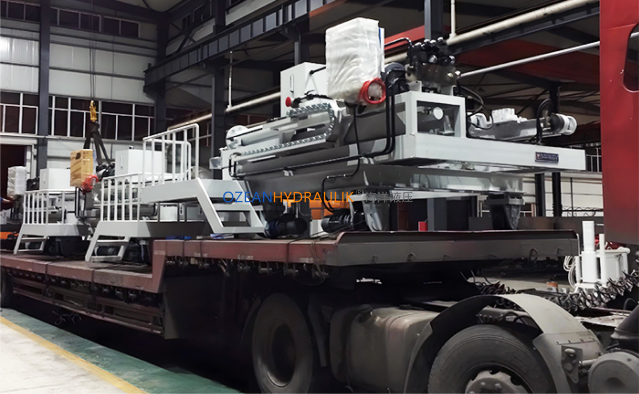

Packaging & Shipping

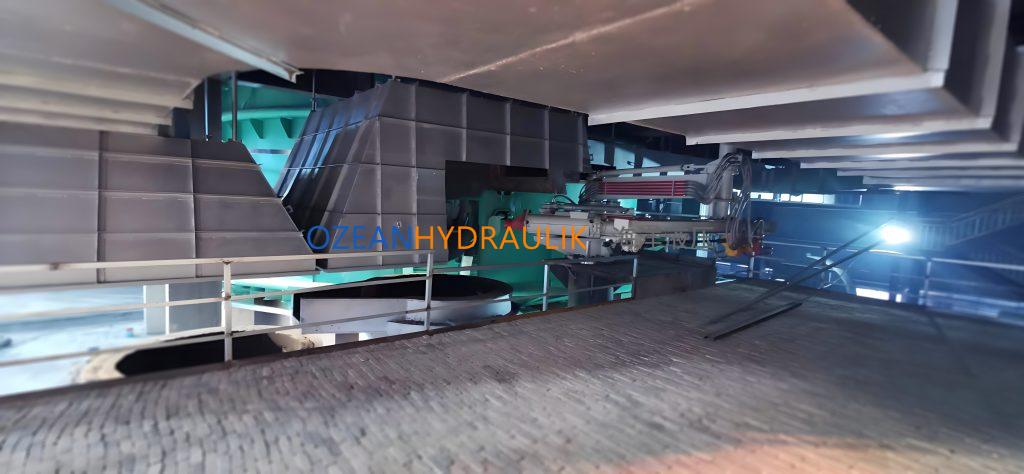

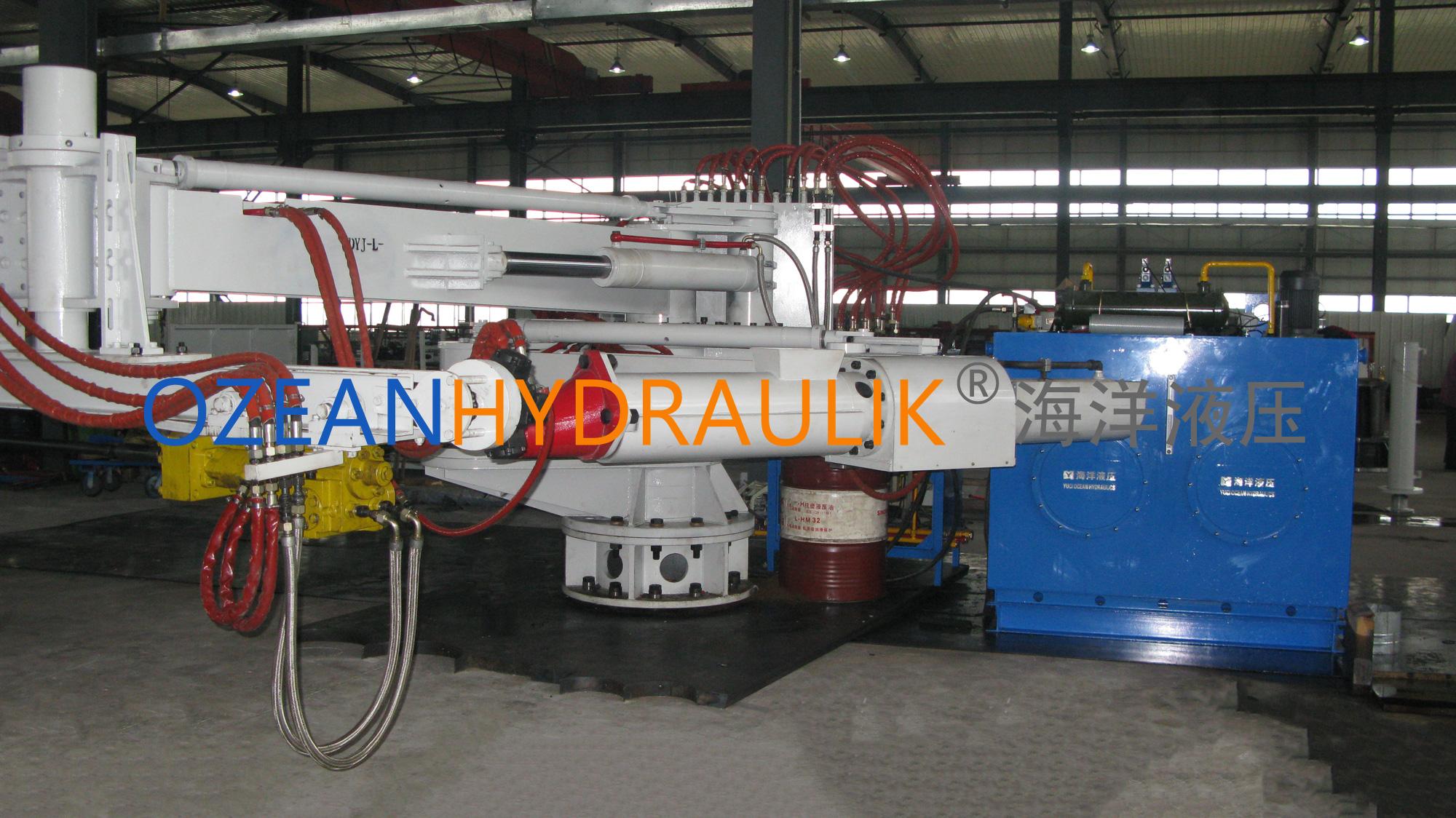

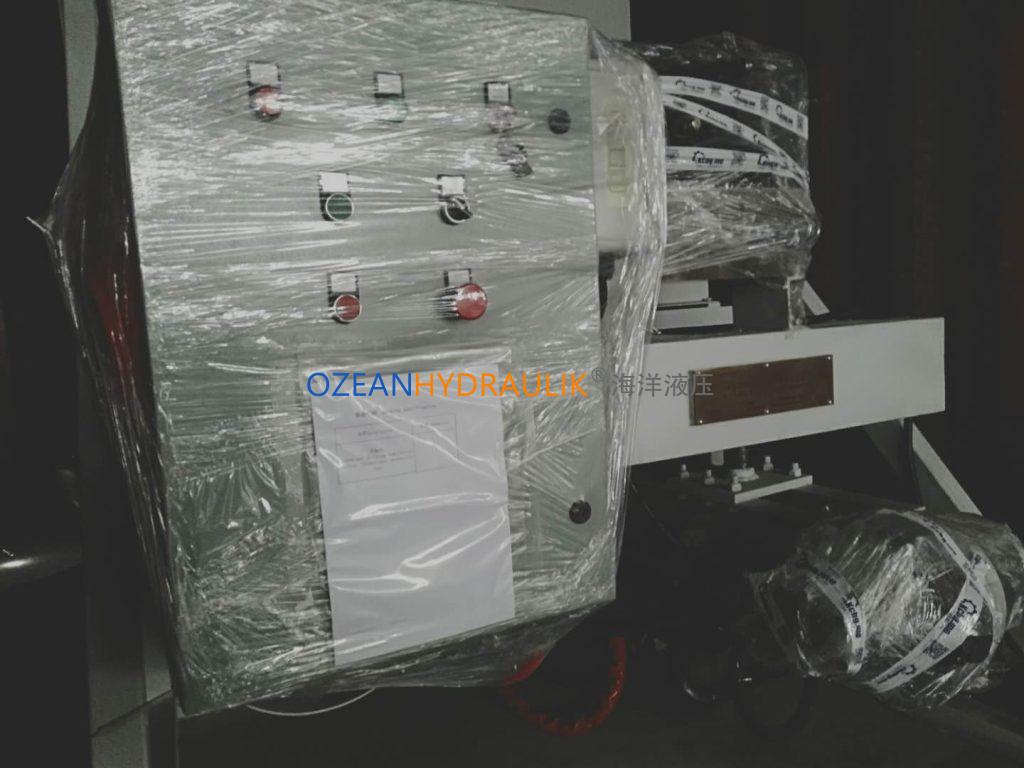

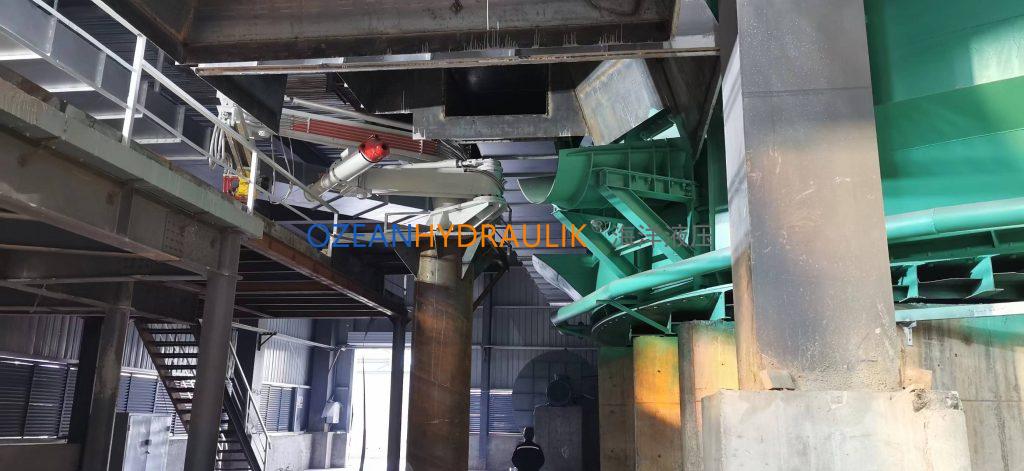

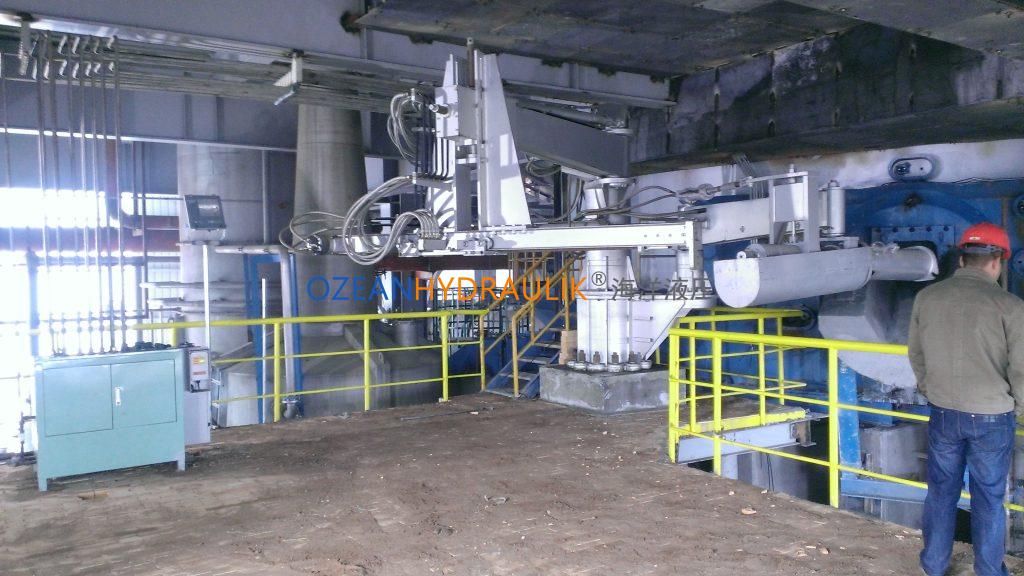

On-Site

Blueprints / Drawings

Note: These drawings are for reference only. The final design will be customized based on your requirements.

Outline Drawing

Hydraulic Circuit Diagram

Layout Drawing

MAIN PARAMETER

Hydraulic Tapping Machine

1	Drill rod diameter (mm):	R32/Ø38
2	Drill bit diameter (mm):	Ø40/Ø60
3	Drill bit feed speed (mm/s):	100-800 (adjustable)
4	Drill bit feed force (kgf):	500-1800 (adjustable)
5	Drill bit rotation speed (r/min):	0-400
6	Drill bit rotation torque (Nm):	500
7	Drill bit travel (mm):	2000
8	Boom rotation angle:	100°
9	Impact frequency (Hz):	50
10	Tapping air pressure (MPa):	0.4-0.6
11	Air consumption for tapping (M/min):	1.0
12	Vertical adjustment for tapping (mm):	±150
13	Horizontal adjustment for tapping (mm):	±50

Hydraulic Mud Gun

1	Mud loading capacity (L):	approx. 50
2	Working thrust of mud cylinder (t):	approx. 35
3	Inner diameter of mud gun (mm):	250
4	Nozzle inner diameter (mm):	85
5	Mud pushing speed (mm/s):	approx. 75
6	Rotation time (s):	7 (minimum, adjustable)
7	Horizontal adjustment angle of gun body:	±10°
8	Vertical adjustment angle of mud gun:	±5°
9	Rotation angle of mud gun:	100°

The above parameters are for reference; customization is available according to specific requirements.
