Mud gun and tapping drill – Type 1

Equipment Overview:

Suitable for placement in front of furnaces where lateral movement is required. The equipment features an integrated hydraulic system, electrical control system, and combines functions for hole opening, plugging, and reaming.

The primary characteristic of this product is its dual telescopic design, making it suitable for narrower workspaces. Customers only need to install the rails and connect the power supply to begin operation.

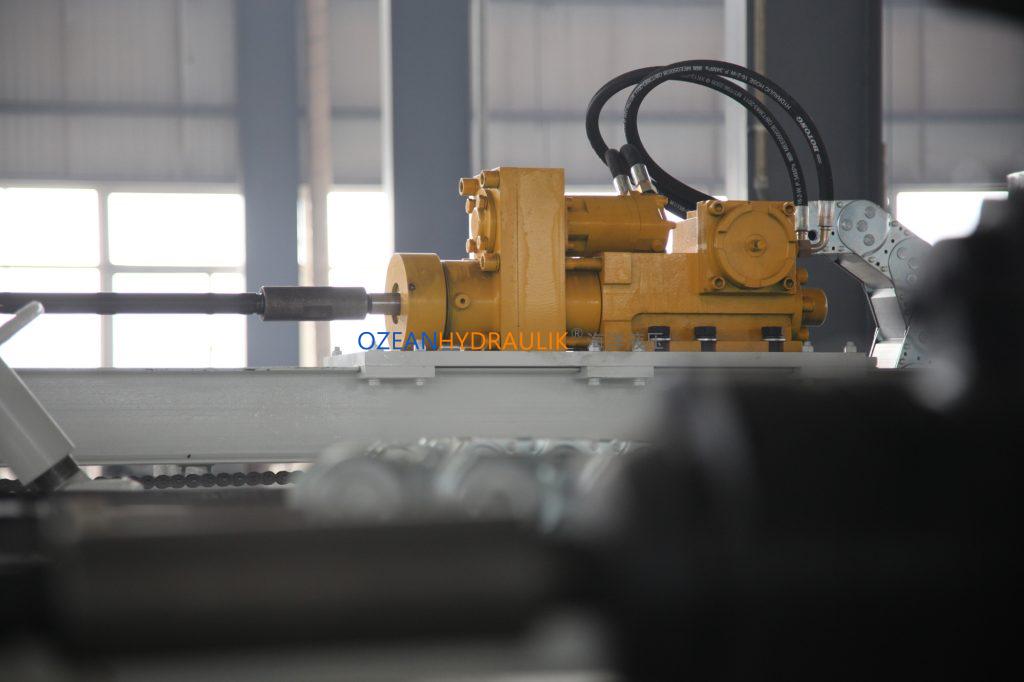

Rock Drills for Hole Opening

Options include pneumatic rock drills, hydraulic rock drills, and combined pneumatic-hydraulic rock drills.

Control Methods

The equipment supports remote wireless control and wired manual control.

PRODUCT DESCRIPTION

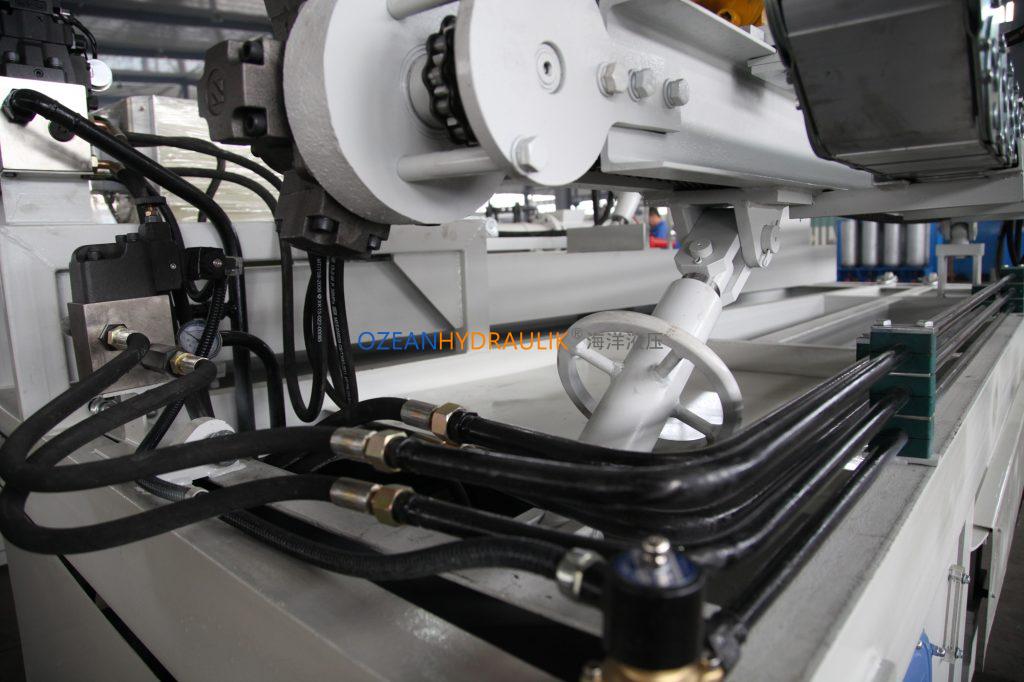

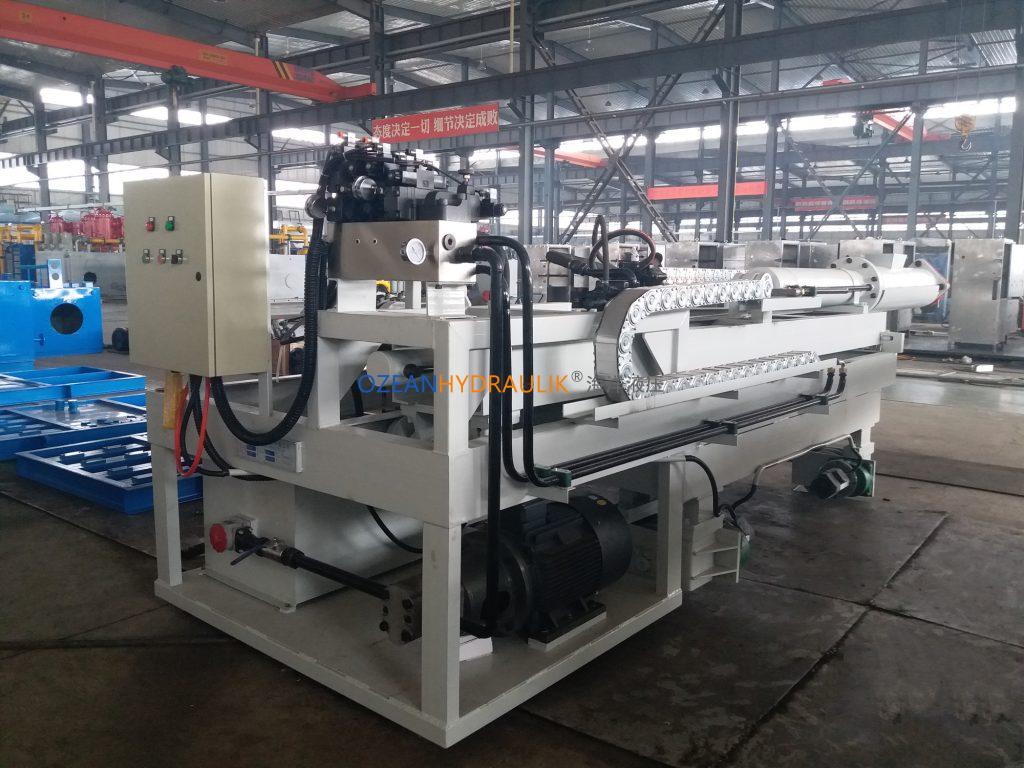

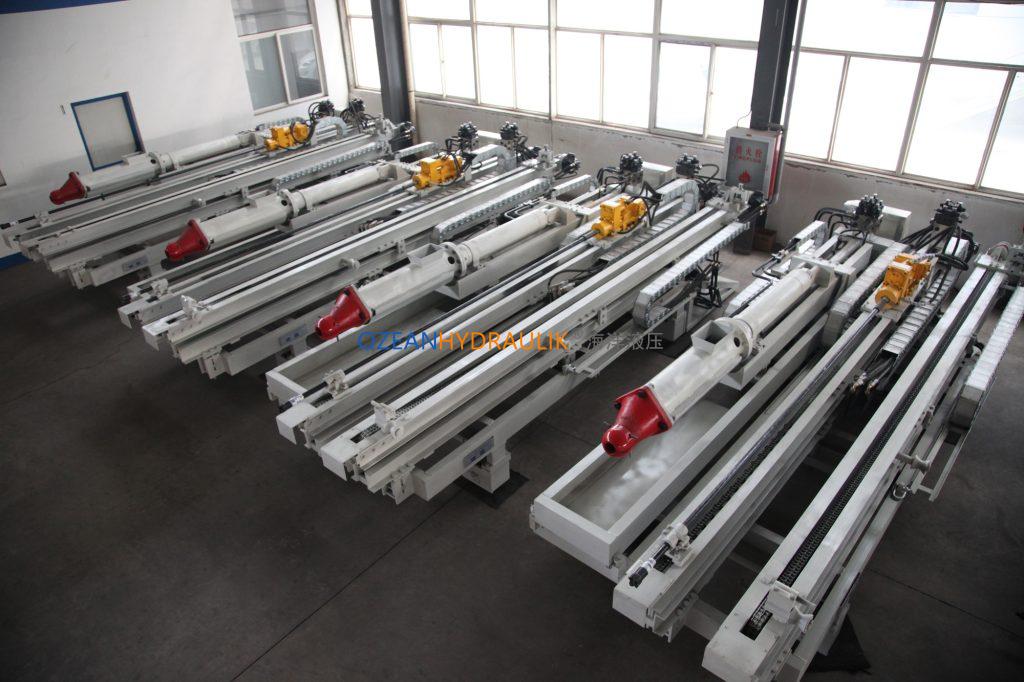

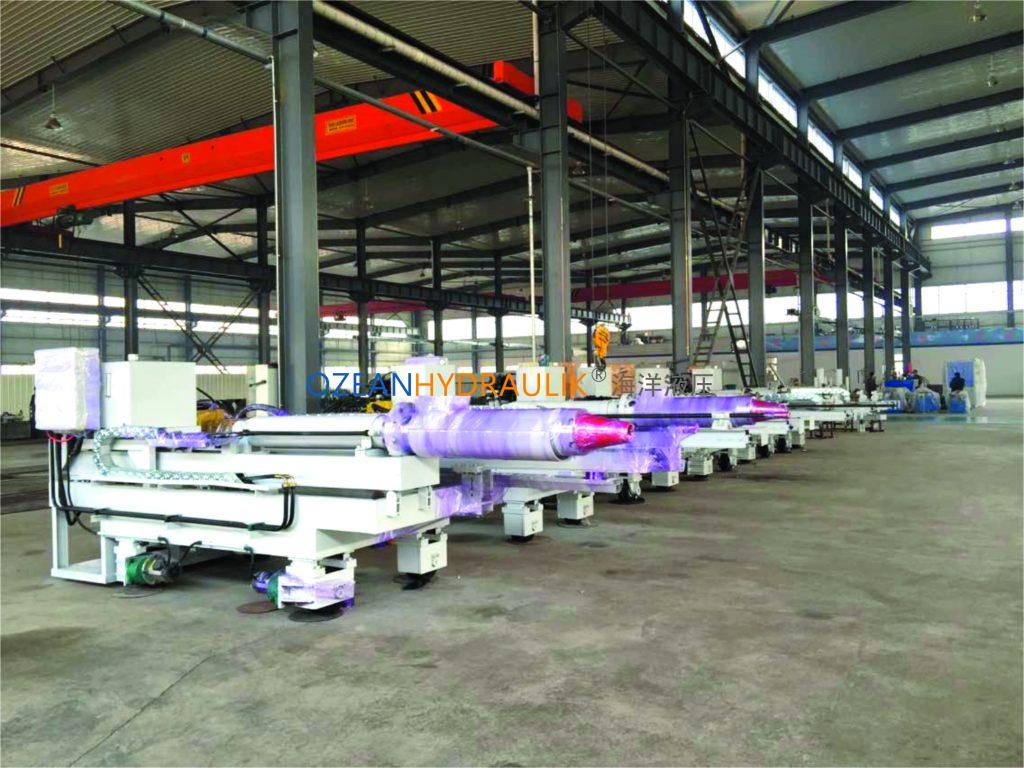

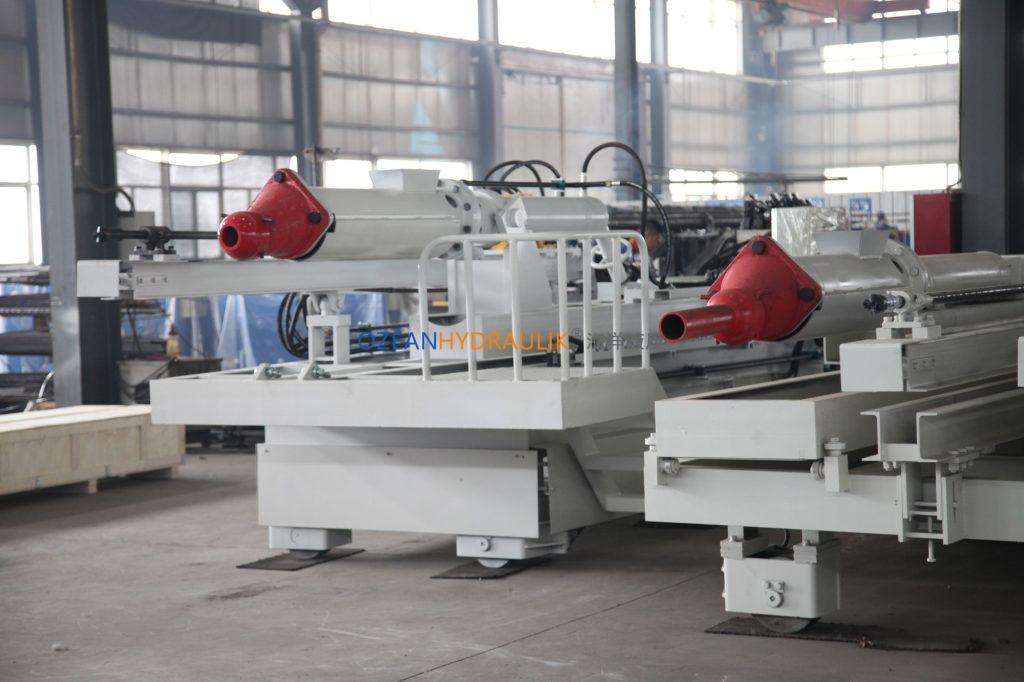

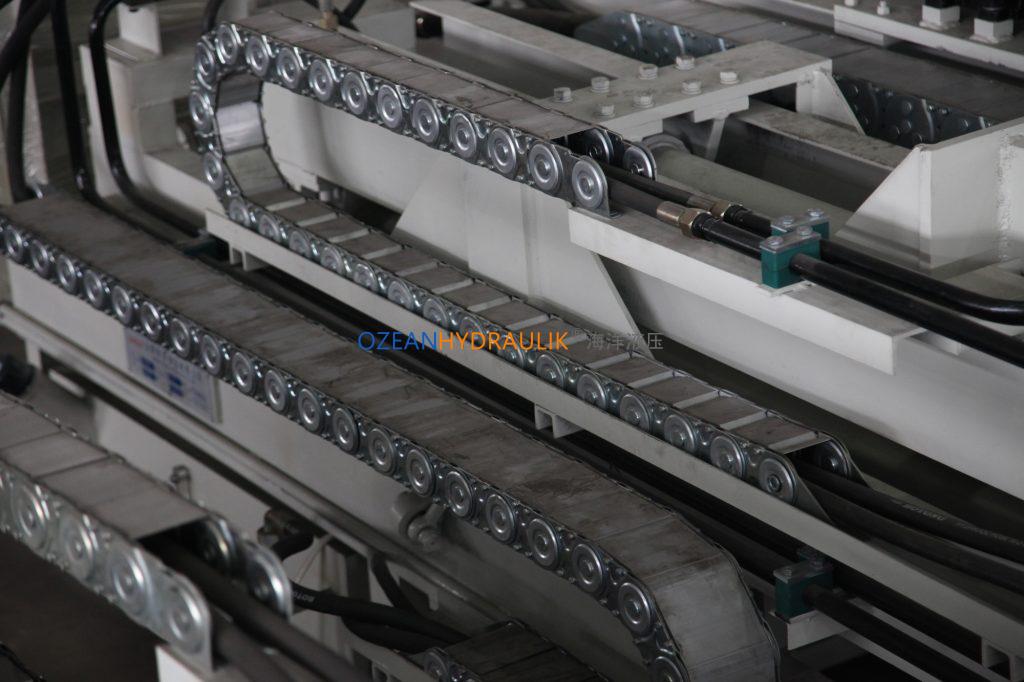

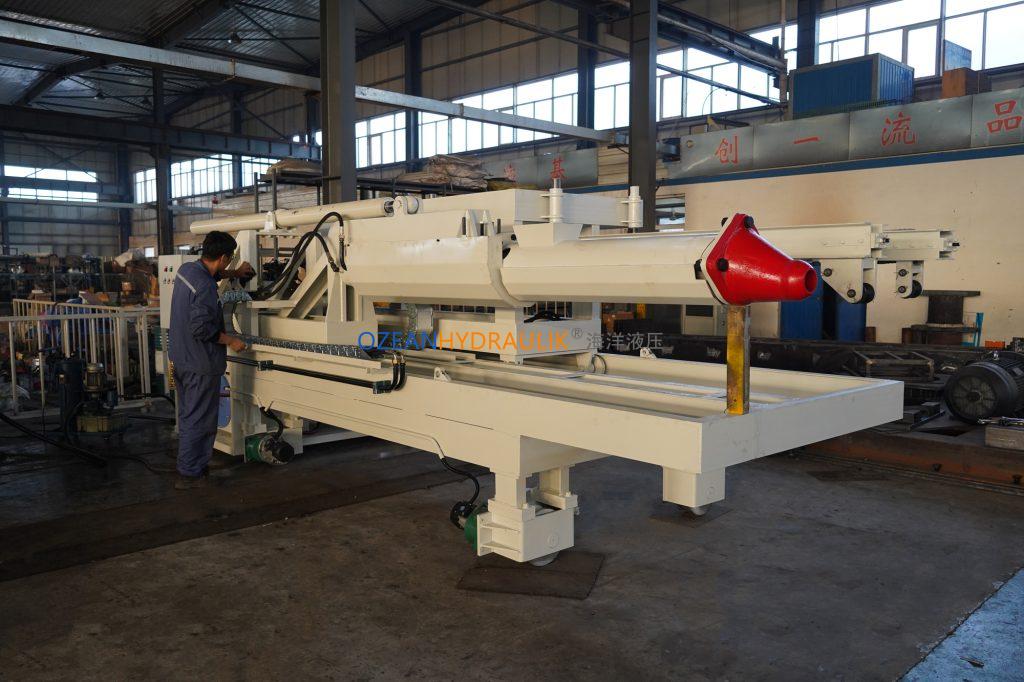

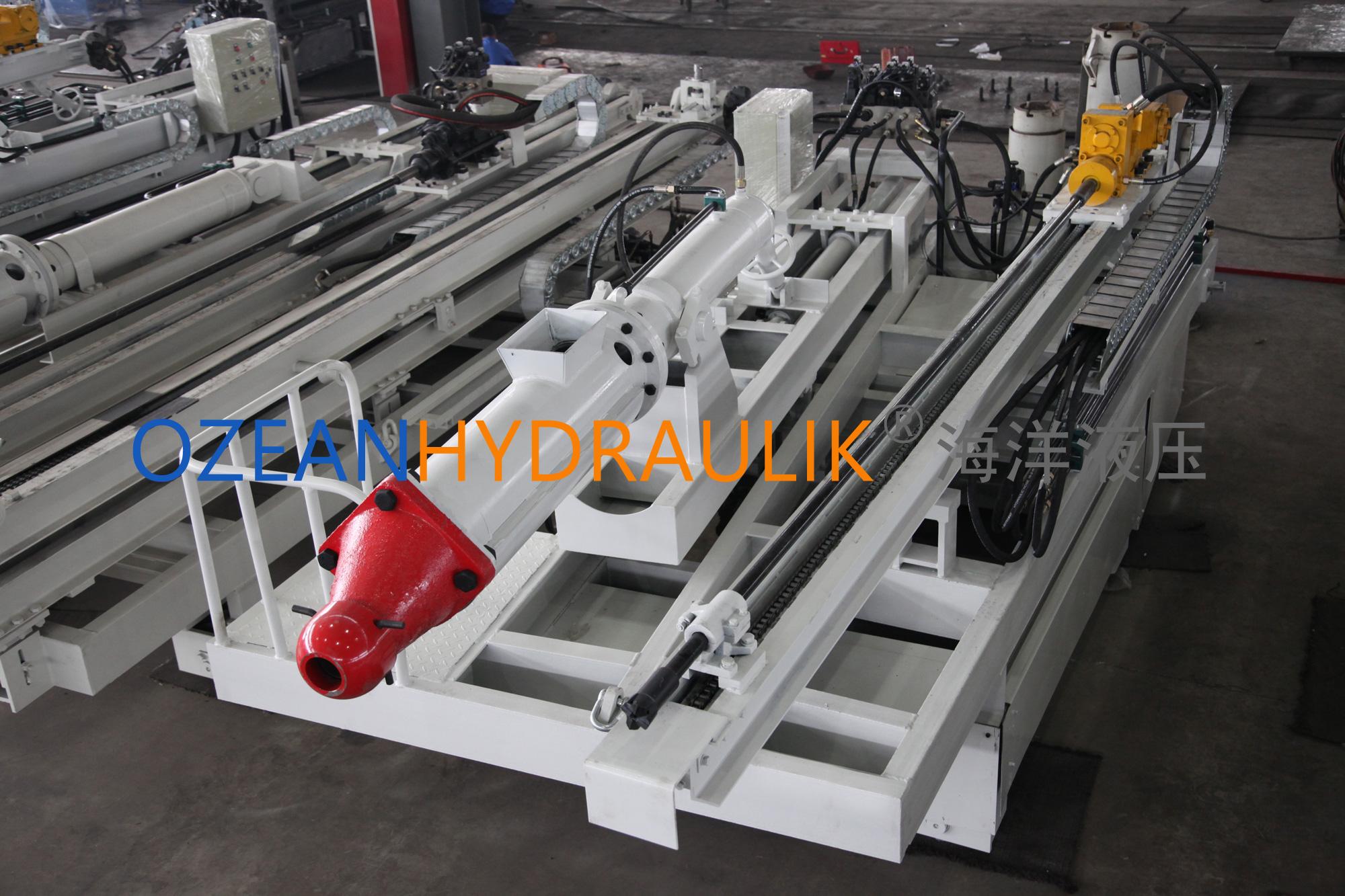

Processing

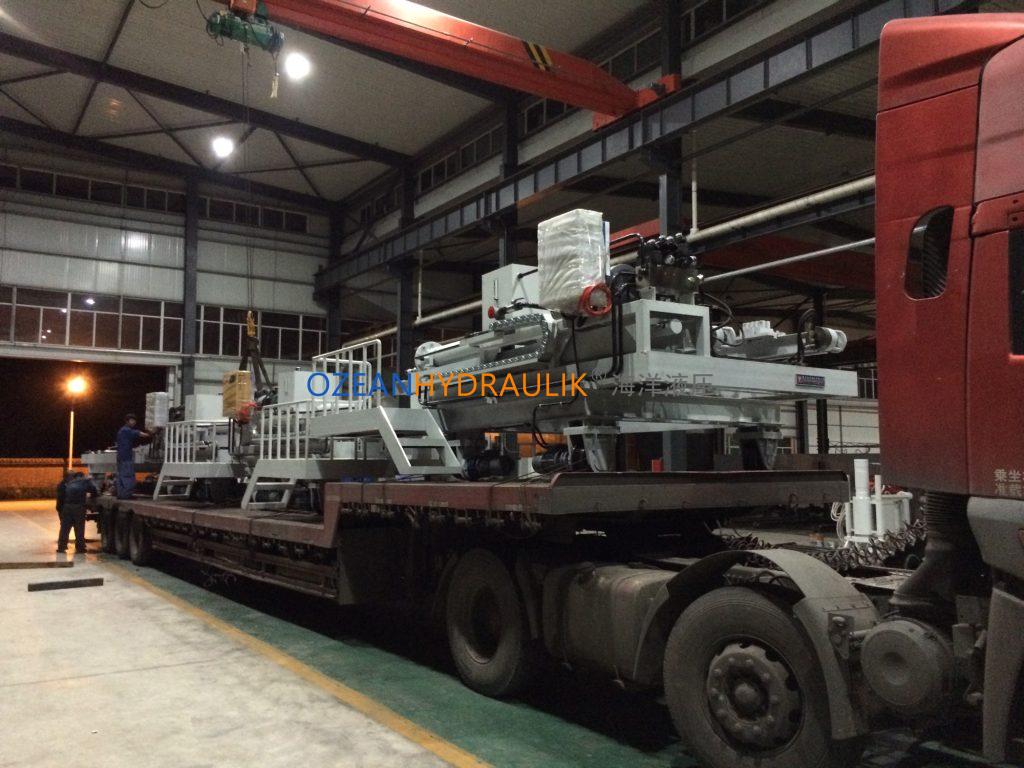

Packaging & Shipping

On-Site

Blueprints / Drawings

Note: These drawings are for reference only. The final design will be customized based on your requirements.

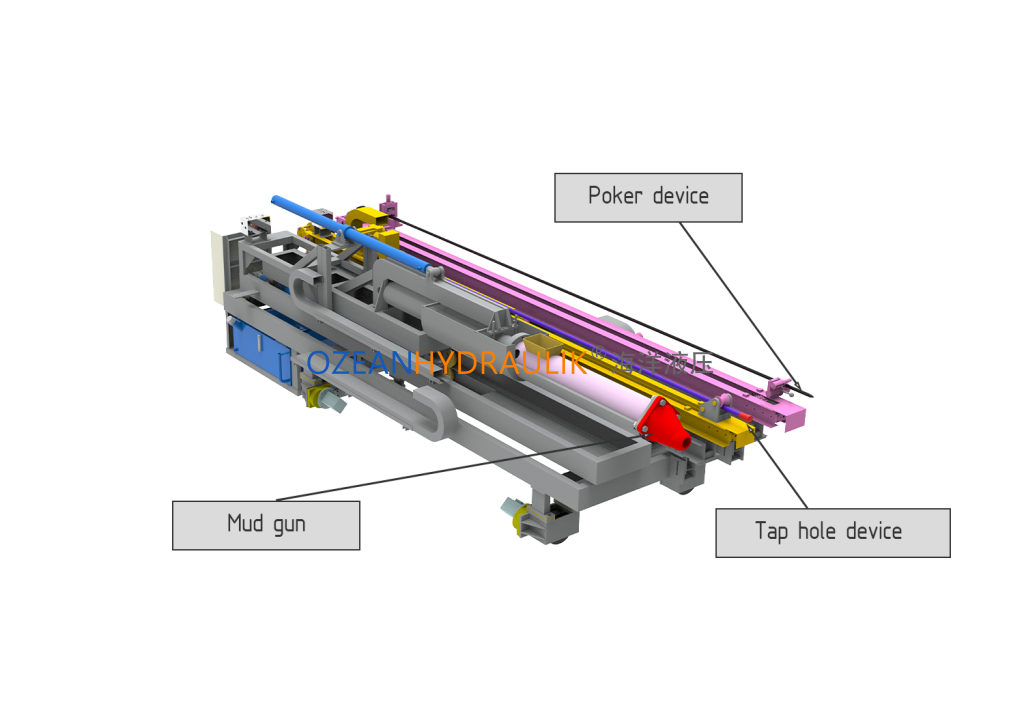

Outline Drawing

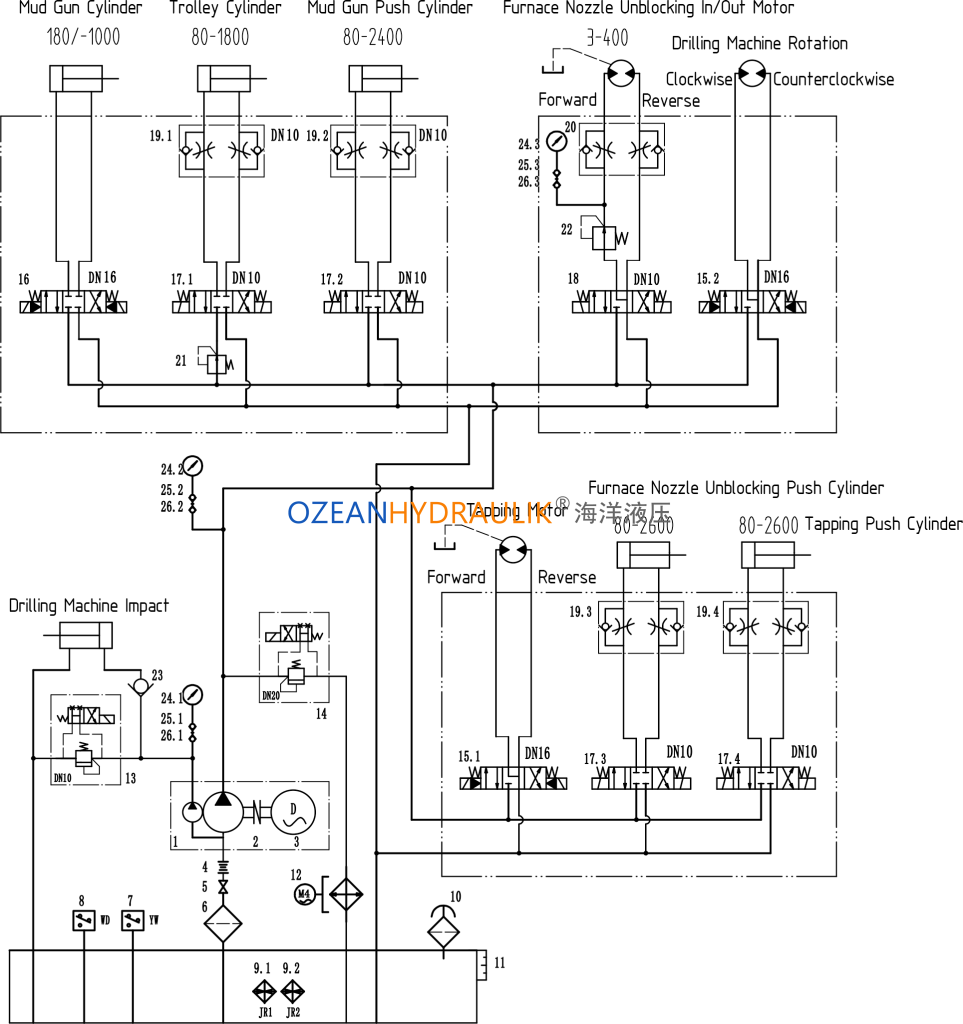

Hydraulic Circuit Diagram

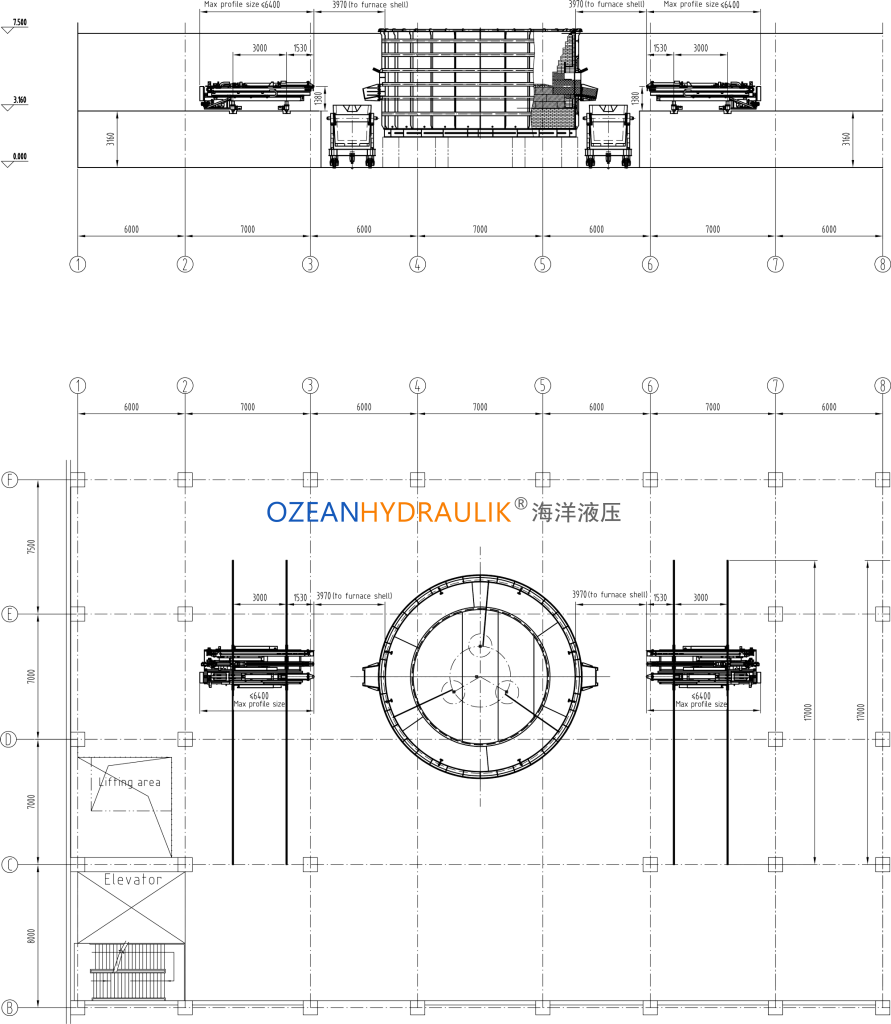

Layout Drawing

MAIN PARAMETER

Hydraulic Tapping Machine

1	Mud cannon mud capacity (L)	approximately 50
2	Mud pushing speed (mm/s)	approximately 60
3	Working pressure (MPa)	8
4	Oil tank capacity (L)	120
5	Mud cannon inner diameter (mm)	250
6	Main carriage speed (m/min)	10
7	Trolley speed (m/min)	0-15 (adjustable)
8	Trolley travel (mm)	1800
9	Total power (kW)	22
10	Rock drill air hose inner diameter (mm)	Ø 13
11	Drill rotation speed (r/min)	0-400
12	Drill rotation torque (Nm)	500
13	Impact frequency (Hz)	50
14	Drill feed force (kgf)	500-1100 (adjustable)
15	Drill feed speed (m/min)	10-20 (adjustable)
16	Drill travel (mm)	3000

The above parameters are for reference; customization is available according to specific requirements.
